Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu2500A
Degree of protection (IP), front sideIP30
Number of poles3
Rated operating voltage600 - 600V
Conditioned rated short-circuit current Iq-kA
InterlockableYes
Version as main switchYes
Type of control elementPush button
Colour control elementOther
Number of switches0
Type of electrical connection of main circuitBolt connection
Suitable for intermediate mountingNo
Version as safety switchNo
Motor drive optionalYes
Rated short-time withstand current lcw85kA
Max. rated operation voltage Ue AC600V
Number of auxiliary contacts as change-over contact0
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Version as maintenance-/service switchNo
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V-kW
Motor drive integratedNo
Version as emergency stop installationNo
Suitable for floor mountingNo
Device constructionBuilt-in device slide-in technique (withdrawable)
Voltage release optionalYes
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V2500A
Rated permanent current at AC-23, 400 V2500A
Version as reversing switchNo
Switching power at 400 V-kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

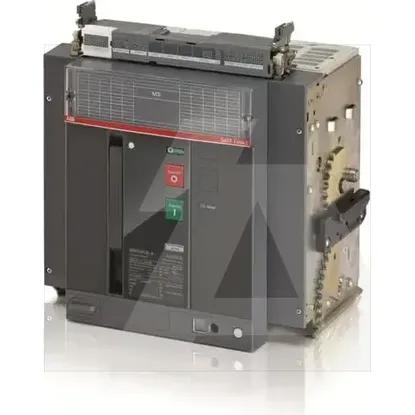

1SDA079634R1 | E4.2V-A/MS 2500 3p WMP
