Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu3200A
Rated operation power at AC-3, 400 V-kW
Number of poles3
Number of switches0
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP30
InterlockableYes
Type of control elementPush button
Type of electrical connection of main circuitBolt connection
Rated operating voltage600 - 600V
Rated operation power at AC-23, 400 V-kW
Version as emergency stop installationNo
Version as safety switchNo
Motor drive integratedNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Version as main switchYes
Version as maintenance-/service switchNo
Rated short-time withstand current lcw85kA
Suitable for floor mountingNo
Colour control elementOther
Voltage release optionalYes
Motor drive optionalYes
Suitable for intermediate mountingNo
Device constructionBuilt-in device slide-in technique (withdrawable)
Max. rated operation voltage Ue AC600V
Suitable for distribution board installationYes
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V3200A
Degree of protection (NEMA)Other
Version as reversing switchNo
Rated permanent current at AC-23, 400 V3200A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

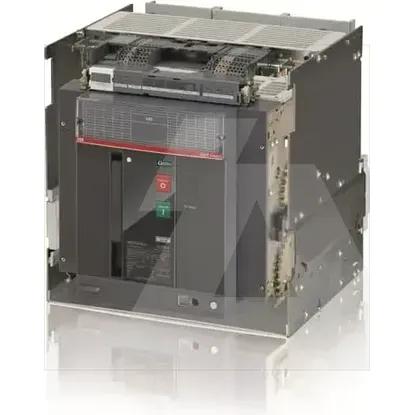

1SDA079635R1 | E4.2V-A/MS 3200 3p WMP
