Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of poles4
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Rated operating voltage600 - 600V
Degree of protection (IP), front sideIP30
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu2500A
Number of auxiliary contacts as normally closed contact0
Number of switches0
InterlockableYes
Version as main switchYes
Rated operation power at AC-23, 400 V-kW
Type of control elementPush button
Version as safety switchNo
Suitable for floor mountingNo
Motor drive integratedNo
Suitable for front mounting centreNo
Rated short-time withstand current lcw65kA
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Colour control elementOther
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchNo
Device constructionBuilt-in device slide-in technique (withdrawable)
Voltage release optionalYes
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V2500A
Switching power at 400 V-kW
Degree of protection (NEMA)Other
Version as reversing switchNo
Rated permanent current at AC-23, 400 V2500A
Max. rated operation voltage Ue AC600V
Motor drive optionalYes
Suitable for distribution board installationYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

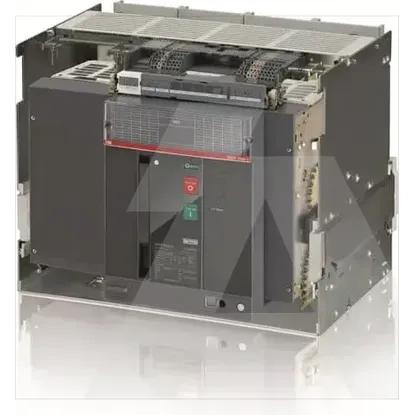

1SDA079644R1 | E4.2S-A/MS 2500 4p WMP
