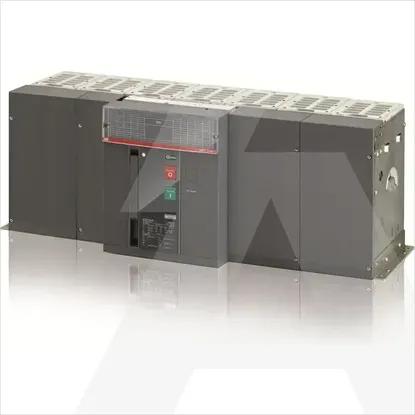

1SDA079667R1 | E6.2L-A/MS 5000 4p F HR
Code: 1985718
ManufacturerABB
Catalog number1SDA079667R1
TypeSwitch disconnector
CategorySwitch disconnector
EAN code8015644860905
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Motor drive optionalYes
Motor drive integratedNo
Version as emergency stop installationNo
Rated operating voltage600 - 600V
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Type of electrical connection of main circuitBolt connection
Version as safety switchNo
Type of control elementPush button
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Number of switches0
Version as maintenance-/service switchNo
Degree of protection (IP), front sideIP30
Suitable for distribution board installationYes
Suitable for floor mountingNo
Rated short-time withstand current lcw100kA
Suitable for front mounting centreNo
InterlockableYes
Rated operation power at AC-23, 400 V-kW
Colour control elementOther
Version as main switchYes
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalYes
Rated permanent current at AC-21, 400 V5000A
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V5000A
Degree of protection (NEMA)Other
Version as reversing switchNo
Rated permanent current Iu5000A
Number of poles4
Max. rated operation voltage Ue AC600V
