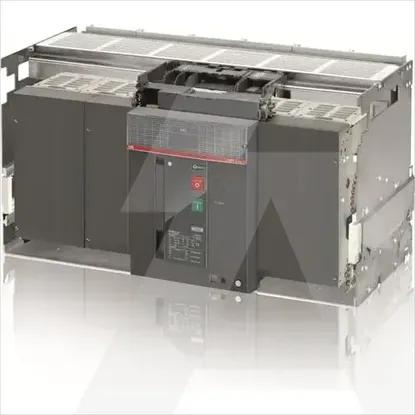

1SDA079672R1 | E6.2L-A/MS 4000 3p WMP
Code: 1985720
ManufacturerABB
Catalog number1SDA079672R1
TypeSwitch disconnector
CategorySwitch disconnector
EAN code8015644860950
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Number of switches0
Number of auxiliary contacts as normally closed contact0
Rated operating voltage600 - 600V
Degree of protection (IP), front sideIP30
Version as emergency stop installationNo
Version as maintenance-/service switchNo
Type of electrical connection of main circuitBolt connection
Version as safety switchNo
Suitable for distribution board installationYes
Motor drive integratedNo
Rated operation power at AC-23, 400 V-kW
Type of control elementPush button
Suitable for floor mountingNo
Colour control elementOther
Rated short-time withstand current lcw100kA
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Version as main switchYes
InterlockableYes
Motor drive optionalYes
Suitable for front mounting 4-holeNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V4000A
Device constructionBuilt-in device slide-in technique (withdrawable)
Voltage release optionalYes
Version as reversing switchNo
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V4000A
Rated permanent current Iu4000A
Number of poles3
Max. rated operation voltage Ue AC600V
