Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu4000A
Rated operation power at AC-3, 400 V-kW
Rated operating voltage600 - 600V
Conditioned rated short-circuit current Iq-kA
Number of poles4
Degree of protection (IP), front sideIP30
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Number of switches0
Version as emergency stop installationNo
InterlockableYes
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V-kW
Type of control elementPush button
Version as maintenance-/service switchNo
Rated short-time withstand current lcw100kA
Version as safety switchNo
Version as main switchYes
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Suitable for floor mountingNo
Colour control elementOther
Motor drive optionalYes
Max. rated operation voltage Ue AC600V
Device constructionBuilt-in device slide-in technique (withdrawable)
Voltage release optionalYes
Rated permanent current at AC-21, 400 V4000A
Rated permanent current at AC-23, 400 V4000A
Degree of protection (NEMA)Other
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Switching power at 400 V-kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

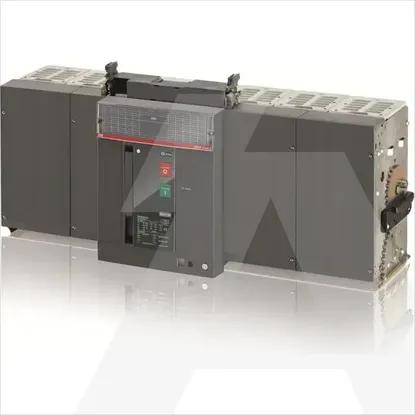

1SDA079690R1 | E6.2L-A/f/MS 4000 4p WMP
