Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact4
With integrated under voltage releaseNo
Overload release current setting2000.0 - 5000A
Degree of protection (IP)IP30
Number of auxiliary contacts as normally closed contact0
Adjustment range short-term delayed short-circuit release3000.0 - 50000A
With switched-off indicatorYes
Type of electrical connection of main circuitConnection at separate chassis part
Motor drive integratedNo
Position of connection for main current circuitConnection at separate chassis part
Type of control elementPush button
Integrated earth fault protectionNo
Device constructionBuilt-in device slide-in technique (withdrawable)
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Complete device with protection unitYes
Adjustment range undelayed short-circuit release7500.0 - 75000A
Motor drive optionalYes
Rated permanent current Iu5000A
Number of poles4
Rated voltage900 - 900V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

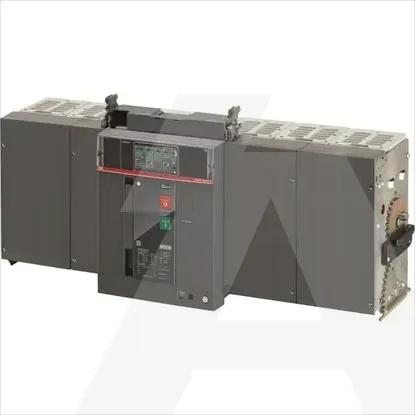

1SDA104635R1 | E6.2H/E9 5000 Ekip Dip LSI 4p WMP 900V
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
4
With integrated under voltage release
Overload release current setting
2000.0 .. 5000A
Degree of protection (IP)
IP30
Number of auxiliary contacts as normally closed contact
0
Adjustment range short-term delayed short-circuit release
3000.0 .. 50000A
With switched-off indicator
Type of electrical connection of main circuit
Connection at separate chassis part
Motor drive integrated
Position of connection for main current circuit
Connection at separate chassis part
Type of control element
Push button
Integrated earth fault protection
Device construction
Built-in device slide-in technique (withdrawable)
DIN rail (top hat rail) mounting optional
Suitable for DIN rail (top hat rail) mounting
Complete device with protection unit
Adjustment range undelayed short-circuit release
7500.0 .. 75000A
Motor drive optional
Rated permanent current Iu
5000A
Number of poles
4
Rated voltage
900 .. 900V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
-kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
