Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as change-over contact4
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Number of auxiliary contacts as normally closed contact0
Overload release current setting1280.0 - 3200A
Number of poles3
Degree of protection (IP)IP30
Rated permanent current Iu3200A
Rated voltage730 - 730V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
With switched-off indicatorYes
Position of connection for main current circuitBack side
Adjustment range short-term delayed short-circuit release1920.0 - 32000A
Type of electrical connection of main circuitBolt connection
Type of control elementPush button
Motor drive integratedNo
Complete device with protection unitYes
Adjustment range undelayed short-circuit release4800.0 - 48000A
Suitable for DIN rail (top hat rail) mountingNo
Integrated earth fault protectionNo
Motor drive optionalYes
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

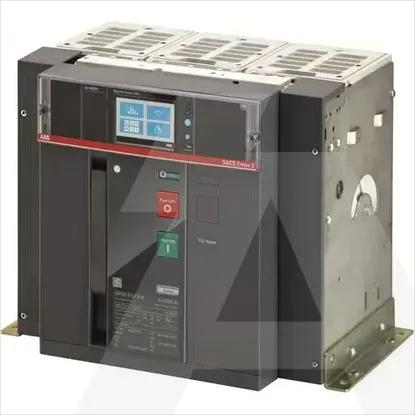

1SDA113760R1 | E4.2H-A/E 3200 Ekip Touch LSI 3p FVR
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as change-over contact
4
Number of auxiliary contacts as normally open contact
0
With integrated under voltage release
Number of auxiliary contacts as normally closed contact
0
Overload release current setting
1280.0 .. 3200A
Number of poles
3
Degree of protection (IP)
IP30
Rated permanent current Iu
3200A
Rated voltage
730 .. 730V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
-kA
With switched-off indicator
Position of connection for main current circuit
Back side
Adjustment range short-term delayed short-circuit release
1920.0 .. 32000A
Type of electrical connection of main circuit
Bolt connection
Type of control element
Push button
Motor drive integrated
Complete device with protection unit
Adjustment range undelayed short-circuit release
4800.0 .. 48000A
Suitable for DIN rail (top hat rail) mounting
Integrated earth fault protection
Motor drive optional
Device construction
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
