Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Position of connection for main current circuitConnection at separate chassis part
With integrated under voltage releaseNo
Number of auxiliary contacts as change-over contact4
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu3200A
Overload release current setting1280.0 - 3200A
Number of auxiliary contacts as normally closed contact0
Number of poles3
Degree of protection (IP)IP30
Rated voltage730 - 730V
Type of electrical connection of main circuitConnection at separate chassis part
Motor drive integratedNo
With switched-off indicatorYes
Adjustment range undelayed short-circuit release4800.0 - 48000A
Adjustment range short-term delayed short-circuit release1920.0 - 32000A
Type of control elementPush button
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Suitable for DIN rail (top hat rail) mountingNo
Motor drive optionalYes
Device constructionBuilt-in device slide-in technique (withdrawable)
Integrated earth fault protectionYes
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

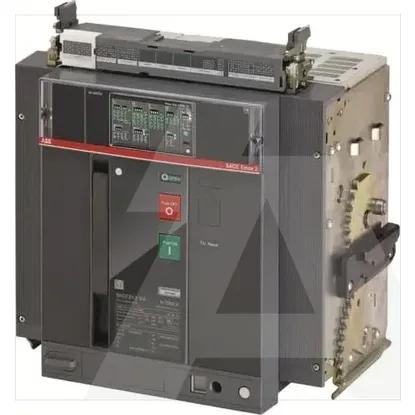

1SDA113767R1 | E4.2H-A/E 3200 Ekip Dip LSIG 3p WMP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Position of connection for main current circuit
Connection at separate chassis part
With integrated under voltage release
Number of auxiliary contacts as change-over contact
4
Number of auxiliary contacts as normally open contact
0
Rated permanent current Iu
3200A
Overload release current setting
1280.0 .. 3200A
Number of auxiliary contacts as normally closed contact
0
Number of poles
3
Degree of protection (IP)
IP30
Rated voltage
730 .. 730V
Type of electrical connection of main circuit
Connection at separate chassis part
Motor drive integrated
With switched-off indicator
Adjustment range undelayed short-circuit release
4800.0 .. 48000A
Adjustment range short-term delayed short-circuit release
1920.0 .. 32000A
Type of control element
Push button
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
-kA
Suitable for DIN rail (top hat rail) mounting
Motor drive optional
Device construction
Built-in device slide-in technique (withdrawable)
Integrated earth fault protection
DIN rail (top hat rail) mounting optional
Complete device with protection unit
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
