Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Type of control elementPush button
Type of electrical connection of main circuitConnection at separate chassis part
Degree of protection (IP)IP30
Position of connection for main current circuitConnection at separate chassis part
Number of auxiliary contacts as change-over contact4
Number of auxiliary contacts as normally closed contact0
Number of poles4
Adjustment range undelayed short-circuit release4800.0 - 48000A
Overload release current setting1280.0 - 3200A
Motor drive integratedNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Rated voltage730 - 730V
With integrated under voltage releaseNo
Adjustment range short-term delayed short-circuit release1920.0 - 32000A
Number of auxiliary contacts as normally open contact0
With switched-off indicatorYes
Rated permanent current Iu3200A
DIN rail (top hat rail) mounting optionalNo
Integrated earth fault protectionYes
Motor drive optionalYes
Suitable for DIN rail (top hat rail) mountingNo
Device constructionBuilt-in device slide-in technique (withdrawable)
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

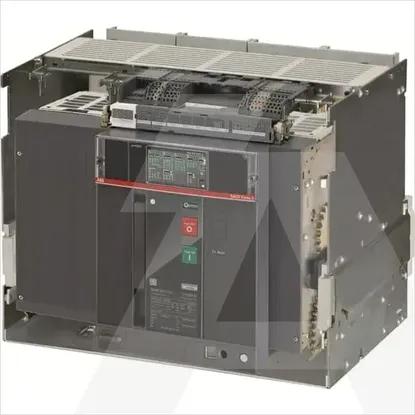

1SDA113771R1 | E4.2H-A/E 3200 Ekip Dip LSIG 4p WMP
