Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Rated permanent current Iu3200A
Number of auxiliary contacts as change-over contact4
Number of poles4
Number of auxiliary contacts as normally closed contact0
Overload release current setting1280.0 - 3200A
Type of control elementPush button
Position of connection for main current circuitConnection at separate chassis part
Rated voltage730 - 730V
Device constructionBuilt-in device slide-in technique (withdrawable)
With switched-off indicatorYes
Motor drive optionalYes
Complete device with protection unitYes
Motor drive integratedNo
Adjustment range undelayed short-circuit release4800.0 - 48000A
DIN rail (top hat rail) mounting optionalNo
Integrated earth fault protectionYes
Degree of protection (IP)IP30
Adjustment range short-term delayed short-circuit release1920.0 - 32000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Type of electrical connection of main circuitConnection at separate chassis part
Suitable for DIN rail (top hat rail) mountingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

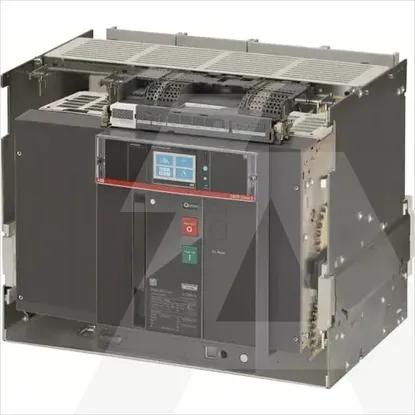

1SDA113773R1 | E4.2H-A/E 3200 Ekip Touch LSIG 4p WMP
