Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu2500A
Overload release current setting1000.0 - 2500A
With integrated under voltage releaseNo
Number of poles3
Rated voltage1000 - 1000V
Motor drive integratedNo
Degree of protection (IP)IP30
Number of auxiliary contacts as change-over contact4
Type of control elementPush button
Type of electrical connection of main circuitBolt connection
Position of connection for main current circuitBack side
With switched-off indicatorYes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalYes
Suitable for DIN rail (top hat rail) mountingNo
Integrated earth fault protectionYes
Adjustment range undelayed short-circuit release3750.0 - 37500A
Adjustment range short-term delayed short-circuit release1500.0 - 25000A
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

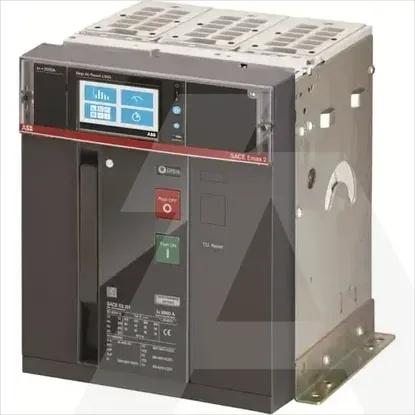

1SDA115926R1 | E2.2H/E10 2500 Ekip Touch LSIG 3p FHR
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
2500A
Overload release current setting
1000.0 .. 2500A
With integrated under voltage release
Number of poles
3
Rated voltage
1000 .. 1000V
Motor drive integrated
Degree of protection (IP)
IP30
Number of auxiliary contacts as change-over contact
4
Type of control element
Push button
Type of electrical connection of main circuit
Bolt connection
Position of connection for main current circuit
Back side
With switched-off indicator
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
-kA
Device construction
Built-in device fixed built-in technique
Motor drive optional
Suitable for DIN rail (top hat rail) mounting
Integrated earth fault protection
Adjustment range undelayed short-circuit release
3750.0 .. 37500A
Adjustment range short-term delayed short-circuit release
1500.0 .. 25000A
DIN rail (top hat rail) mounting optional
Complete device with protection unit
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
