Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
With integrated under voltage releaseNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Overload release current setting1000.0 - 2500A
Number of auxiliary contacts as change-over contact4
Degree of protection (IP)IP30
Position of connection for main current circuitConnection at separate chassis part
Type of control elementPush button
With switched-off indicatorYes
Motor drive integratedNo
Type of electrical connection of main circuitConnection at separate chassis part
Adjustment range short-term delayed short-circuit release1500.0 - 25000A
Device constructionBuilt-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range undelayed short-circuit release3750.0 - 37500A
Complete device with protection unitYes
DIN rail (top hat rail) mounting optionalNo
Integrated earth fault protectionNo
Motor drive optionalYes
Rated permanent current Iu2500A
Number of poles3
Rated voltage1000 - 1000V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

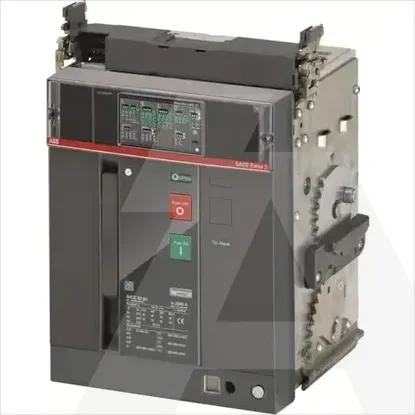

1SDA115927R1 | E2.2H/E10 2500 Ekip Dip LSI 3p WMP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
With integrated under voltage release
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Overload release current setting
1000.0 .. 2500A
Number of auxiliary contacts as change-over contact
4
Degree of protection (IP)
IP30
Position of connection for main current circuit
Connection at separate chassis part
Type of control element
Push button
With switched-off indicator
Motor drive integrated
Type of electrical connection of main circuit
Connection at separate chassis part
Adjustment range short-term delayed short-circuit release
1500.0 .. 25000A
Device construction
Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting
Adjustment range undelayed short-circuit release
3750.0 .. 37500A
Complete device with protection unit
DIN rail (top hat rail) mounting optional
Integrated earth fault protection
Motor drive optional
Rated permanent current Iu
2500A
Number of poles
3
Rated voltage
1000 .. 1000V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
-kA
