Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated voltage1000 - 1000V
Position of connection for main current circuitConnection at separate chassis part
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact4
Overload release current setting1000.0 - 2500A
Degree of protection (IP)IP30
With integrated under voltage releaseNo
Number of poles3
Rated permanent current Iu2500A
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitConnection at separate chassis part
Type of control elementPush button
With switched-off indicatorYes
Motor drive integratedNo
Adjustment range undelayed short-circuit release3750.0 - 37500A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Adjustment range short-term delayed short-circuit release1500.0 - 25000A
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
Motor drive optionalYes
Device constructionBuilt-in device slide-in technique (withdrawable)
Integrated earth fault protectionYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

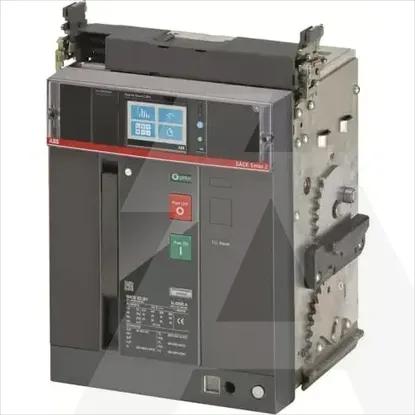

1SDA115929R1 | E2.2H/E10 2500 Ekip Touch LSIG 3p WMP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated voltage
1000 .. 1000V
Position of connection for main current circuit
Connection at separate chassis part
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
4
Overload release current setting
1000.0 .. 2500A
Degree of protection (IP)
IP30
With integrated under voltage release
Number of poles
3
Rated permanent current Iu
2500A
Number of auxiliary contacts as normally open contact
0
Type of electrical connection of main circuit
Connection at separate chassis part
Type of control element
Push button
With switched-off indicator
Motor drive integrated
Adjustment range undelayed short-circuit release
3750.0 .. 37500A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
-kA
Adjustment range short-term delayed short-circuit release
1500.0 .. 25000A
Suitable for DIN rail (top hat rail) mounting
DIN rail (top hat rail) mounting optional
Complete device with protection unit
Motor drive optional
Device construction
Built-in device slide-in technique (withdrawable)
Integrated earth fault protection
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
