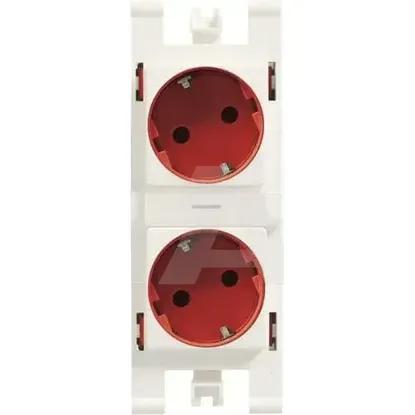

2CLA108800T7001 | T1088 RJ
Code: 1990015
ManufacturerABB
Catalog number2CLA108800T7001
TypeSocket outlet
CategorySocket outlet
EAN code8427238055053
Details
- •Domestic switching devices
- •Socket outlet
- •1 KOM
- •ABB
Technical specifications
Mounting methodModule frame
Halogen freeYes
LockableNo
Rotated central insertNo
Connection typeScrewed terminal
Number of ports USB-A-
Number of phases2
With on/off switchNo
Frequency50 - 60Hz
Number of units2
Label space/information surfaceNo
With signal lampYes
Material qualityThermoplastic
Over voltage protectionNo
Eject-mechanismNo
Fault current protectionNo
With hinged lidNo
Special power supplySafety power supply (green)
MaterialPlastic
Type of fasteningSnap mounting (engagement)
Rated fault current-mA
RAL-number (similar)-
Insulated mountingNo
With enhanced contact protectionYes
Imprint/indicationNone
Impact strengthIK04
Concurrently switching neutral conductorNo
Surface finishingGlossy
Width of device55mm
Suitable for degree of protection (IP)IP21
With miniature fuseNo
With loop through functionNo
Depth of device294.000mm
Height of device150mm
TransparentNo
Metallic colourNo
With orientation lightingNo
Number of active pins (flat)0
Number of socket outlets switchable0
Compatible with Amazon AlexaNo
Number of modules (module system)3
Compatible with Apple HomeKitNo
Maximum current rating of USB power supply-A
Compatible with Google AssistantNo
Number of active pins (round)2
With built-in bluetooth speakerNo
Min. depth of built-in installation box-mm
With function lightingYes
With Wi-Fi signal repeaterNo
IFTTT support availableNo
For heavy conditions (according to VDE)No
Number of active contacts (square)0
Number of ports USB-C-
Protective contactEarthing clips
Compliant with UK Building Regulations Part MNo
Number of loop throughs-
Anti-bacterial treatmentNo
Surface protectionUntreated
Nominal current16A
Nominal voltage250V
ColourRed
ModelSocket outlet CEE 7/3 (type F)
