Details
- •Domestic switching devices
- •Socket outlet
- •1 KOM
- •ABB
Technical specifications
ColourWhite

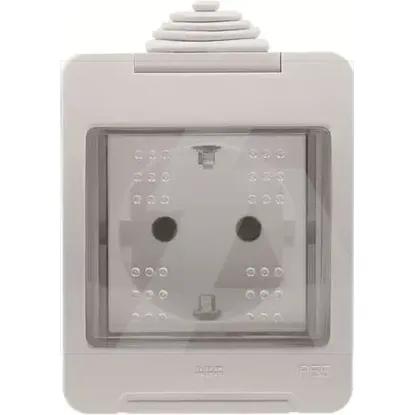

ModelSocket outlet CEE 7/3 (type F)
Mounting methodSurface mounted (plaster)
Number of units1
Nominal voltage250V
Nominal current16A
Halogen freeYes
LockableNo
With hinged lidNo
Rotated central insertNo
With signal lampNo
Eject-mechanismNo
With enhanced contact protectionYes
Connection typeScrewed terminal
Frequency50 - 60Hz
Label space/information surfaceNo
Number of phases2
Surface protectionUntreated
Number of ports USB-A-
With on/off switchNo
Material qualityThermoplastic
Over voltage protectionNo
MaterialPlastic
Insulated mountingNo
Rated fault current-mA
Type of fasteningMounting with screw
Imprint/indicationNone
Special power supplyOther
Fault current protectionNo
Surface finishingMatt
Impact strengthIK04
Suitable for degree of protection (IP)IP55
With loop through functionNo
Depth of device63mm
TransparentNo
With function lightingNo
With miniature fuseNo
Width of device90mm
Height of device90mm
Number of socket outlets switchable0
RAL-number (similar)7035
With orientation lightingNo
Concurrently switching neutral conductorNo
Number of modules (module system)2
IFTTT support availableNo
Number of active pins (round)2
Compatible with Apple HomeKitNo
Min. depth of built-in installation box-mm
Compatible with Google AssistantNo
With Wi-Fi signal repeaterNo
Number of active pins (flat)0
Compatible with Amazon AlexaNo
Metallic colourNo
Anti-bacterial treatmentNo
With built-in bluetooth speakerNo
Number of active contacts (square)0
Maximum current rating of USB power supply-A
Compliant with UK Building Regulations Part MNo
For heavy conditions (according to VDE)No
Number of ports USB-C-
Number of loop throughs-
Protective contactEarthing clips
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CLA328800N1101 | N3288
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Domestic switching devices
- Socket outlet
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Colour
White
Model
Socket outlet CEE 7/3 (type F)
Mounting method
Surface mounted (plaster)
Number of units
1
Nominal voltage
250V
Nominal current
16A
Halogen free
Lockable
With hinged lid
Rotated central insert
With signal lamp
Eject-mechanism
With enhanced contact protection
Connection type
Screwed terminal
Frequency
50 .. 60Hz
Label space/information surface
Number of phases
2
Surface protection
Untreated
Number of ports USB-A
-
With on/off switch
Material quality
Thermoplastic
Over voltage protection
Material
Plastic
Insulated mounting
Rated fault current
-mA
Type of fastening
Mounting with screw
Imprint/indication
None
Special power supply
Other
Fault current protection
Surface finishing
Matt
Impact strength
IK04
Suitable for degree of protection (IP)
IP55
With loop through function
Depth of device
63mm
Transparent
With function lighting
With miniature fuse
Width of device
90mm
Height of device
90mm
Number of socket outlets switchable
0
RAL-number (similar)
7035
With orientation lighting
Concurrently switching neutral conductor
Number of modules (module system)
2
IFTTT support available
Number of active pins (round)
2
Compatible with Apple HomeKit
Min. depth of built-in installation box
-mm
Compatible with Google Assistant
With Wi-Fi signal repeater
Number of active pins (flat)
0
Compatible with Amazon Alexa
Metallic colour
Anti-bacterial treatment
With built-in bluetooth speaker
Number of active contacts (square)
0
Maximum current rating of USB power supply
-A
Compliant with UK Building Regulations Part M
For heavy conditions (according to VDE)
Number of ports USB-C
-
Number of loop throughs
-
Protective contact
Earthing clips
