Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •ABB
Technical specifications
RAL-number (similar)-
Rated voltage400V
Built-in depth69.5mm
Pollution degree3
Short-circuit breaking capacity (Icw)-kA
Rated current25A
Rated fault current-A
Leakage current typeB
Rated insulation voltage Ui440V
Short-time delayed trippingNo
Selective protectionNo
Number of poles4
Surge current capacity3kA
Width in number of modular spacings4
Mounting methodDIN rail
Ambient temperature during operating-25 - 70°C
Degree of protection (IP)IPX4
Explosion-proofNo
Additional equipment possibleYes
Connectable conductor cross section multi-wired- - -mm²
FrequencyOther
With interlocking deviceNo
Connectable conductor cross section solid-core1 - 25mm²
Power loss3.43W
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

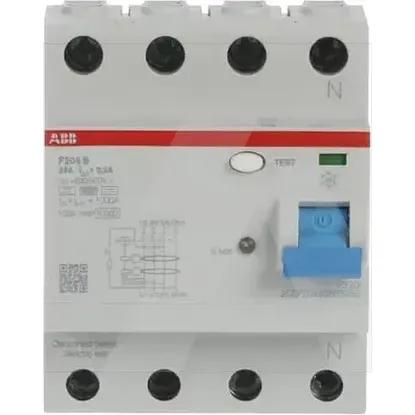

2CSF204568R3250 | F204 B-25/0,3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
RAL-number (similar)
-
Rated voltage
400V
Built-in depth
69.5mm
Pollution degree
3
Short-circuit breaking capacity (Icw)
-kA
Rated current
25A
Rated fault current
-A
Leakage current type
B
Rated insulation voltage Ui
440V
Short-time delayed tripping
Selective protection
Number of poles
4
Surge current capacity
3kA
Width in number of modular spacings
4
Mounting method
DIN rail
Ambient temperature during operating
-25 .. 70°C
Degree of protection (IP)
IPX4
Explosion-proof
Additional equipment possible
Connectable conductor cross section multi-wired
- .. -mm²
Frequency
Other
With interlocking device
Connectable conductor cross section solid-core
1 .. 25mm²
Power loss
3.43W
Rated impulse withstand voltage Uimp
4kV
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
