Details
- •Protective hose systems

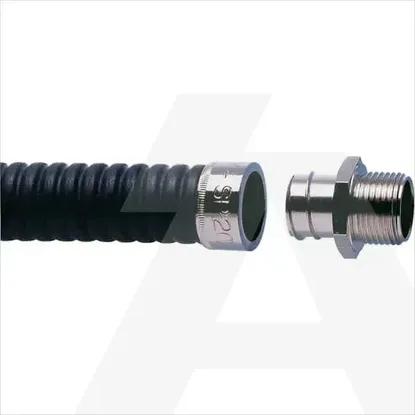

- •Screw connection for protective metallic hose
- •10 KOM
- •ABB
Technical specifications
Material housingBrass
ModelStraight
Total length36.5mm
Thread length12mm
Surface protectionNickel-plated
Construction typeExternal thread
Lowest inner diameter hose-mm
Degree of protection (IP) conduit dependant- - -
Thread typeMetric
With grounding connectionNo
One-pieceNo
Total height30mm
Nominal diameter25mm
Max. outer diameter hose-mm
Number of inlets-
Number of thread lashes-
Operating temperature-50 - 300°C
Revolving threadNo
Thread size CTG G-
Approved in combination with protective conduit ULNo
Approved in combination with protective conduit FINo
Thread connection sizeM25 x 1.5
Connection type screw connection to housingThread
Approved in combination with protective conduit CSANo
Approved in combination with protective conduit according to DIN EN 61386-23No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
7TCA296040R0054 | SB25/M25/A
