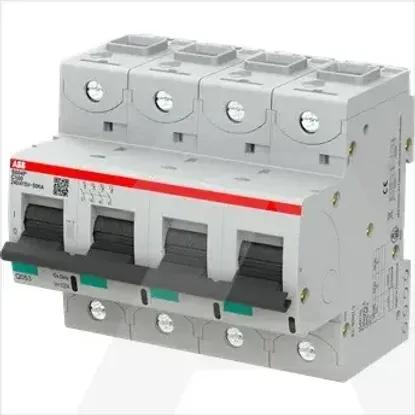

2CCG001236R0001 | S804P-C100
Code: 1996932
ManufacturerABB
Catalog number2CCG001236R0001
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code7612271517052
Details
- •MINIJATURNI PREKIDAC, 4P, 100A, C KRIVULJA, 50kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth82.5mm
Voltage typeOther
Width in number of modular spacings6
Rated insulation voltage Ui690V
Pollution degree3
Over voltage category3
Rated voltage400V
Current limiting class3
Frequency50 - 60Hz
Explosion-proofNo
Degree of protection (IP)IP20
Number of protected poles4
Concurrently switching neutral conductorNo
Power loss32W
Flush-mounted installationNo
Connectable conductor cross section multi-wired1 - 50mm²
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core1 - 70mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated impulse withstand voltage Uimp6kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated current100A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
