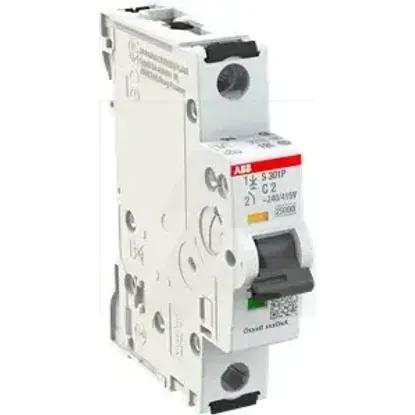

2CDS381001R0024 | S301P-C2
Code: 1997050
ManufacturerABB
Catalog number2CDS381001R0024
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779080651
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Over voltage category4
Built-in depth69mm
Voltage typeOther
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated insulation voltage Ui500V
Degree of protection (IP)IP20
Pollution degree3
Connectable conductor cross section solid-core0.75 - 35mm²
Rated voltage240V
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Width in number of modular spacings1
Number of protected poles1
Ambient temperature during operating-40 - 70°C
Current limiting class-
Explosion-proofNo
Flush-mounted installationNo
Power loss1.4W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated current2A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
