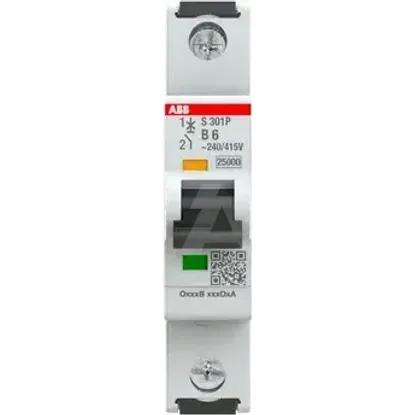

2CDS381001R0065 | S301P-B6
Code: 1997057
ManufacturerABB
Catalog number2CDS381001R0065
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779080583
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Rated voltage240V
Pollution degree3
Degree of protection (IP)IP20
Rated insulation voltage Ui500V
Additional equipment possibleYes
Over voltage category4
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Current limiting class-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp6kV
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Power loss1W
Flush-mounted installationNo
Width in number of modular spacings1
Number of protected poles1
Rated current6A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
