Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Rated voltage240V
Built-in depth69mm
Release characteristicB
Pollution degree3
Current limiting class-
Rated current25A
Connectable conductor cross section solid-core0.75 - 35mm²
Power loss2.3W
Explosion-proofNo
Flush-mounted installationNo
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Over voltage category4
Rated insulation voltage Ui500V
Width in number of modular spacings1.0
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Number of protected poles1
Number of poles (total)1
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

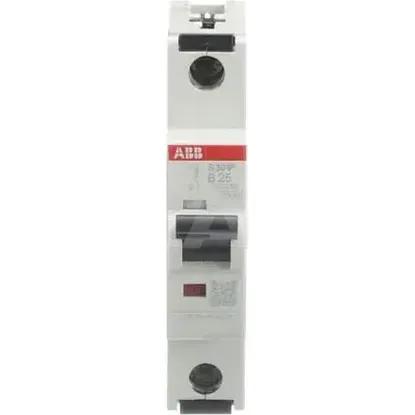

2CDS381001R0255 | S301P-B25
