Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current6A
Release characteristicC
Built-in depth69mm
Frequency50 - 60Hz
Rated voltage240V
Voltage typeOther
Explosion-proofNo
Current limiting class-
Width in number of modular spacings2.0
Pollution degree3
Rated insulation voltage Ui500V
Over voltage category4
Connectable conductor cross section multi-wired0.75 - 25mm²
Power loss1.8W
Number of poles (total)2
Number of protected poles1
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Flush-mounted installationNo
Concurrently switching neutral conductorYes
Rated impulse withstand voltage Uimp6kV
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

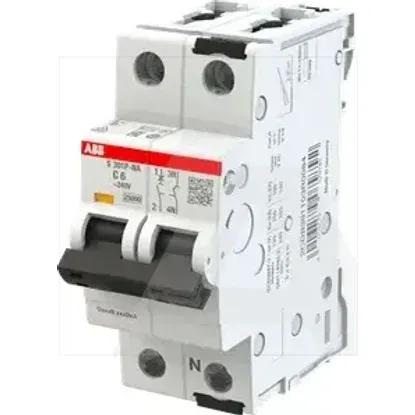

2CDS381103R0064 | S301P-C6NA
