Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Current limiting class-
Frequency50 - 60Hz
Over voltage category4
Built-in depth69mm
Width in number of modular spacings2.0
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Number of protected poles1
Release characteristicC
Ambient temperature during operating-40 - 70°C
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core0.75 - 35mm²
Rated insulation voltage Ui500V
Power loss3.4W
Additional equipment possibleYes
Explosion-proofNo
Flush-mounted installationNo
Rated current16A
Rated voltage240V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Number of poles (total)2
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

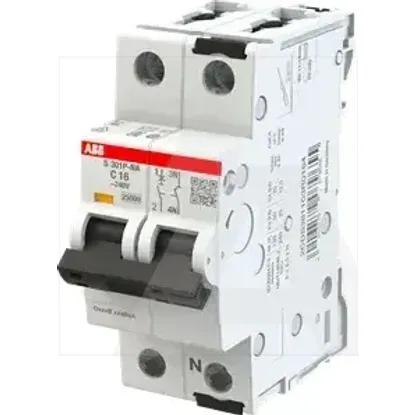

2CDS381103R0164 | S301P-C16NA
