Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Width in number of modular spacings2.0
Over voltage category4
Rated insulation voltage Ui500V
Release characteristicB
Pollution degree3
Current limiting class-
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Frequency50 - 60Hz
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated voltage240V
Ambient temperature during operating-40 - 70°C
Explosion-proofNo
Number of protected poles1
Rated current16A
Power loss3.4W
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated impulse withstand voltage Uimp6kV
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Number of poles (total)2
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

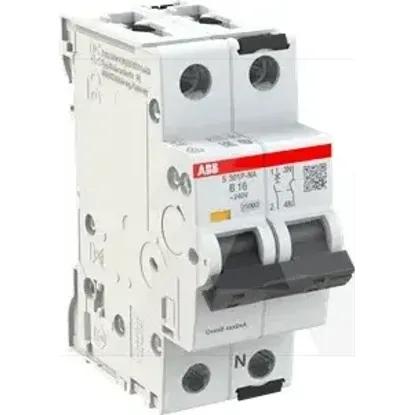

2CDS381103R0165 | S301P-B16NA
