Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Rated insulation voltage Ui500V
Voltage typeOther
Release characteristicC
Built-in depth69mm
Rated current2A
Current limiting class-
Pollution degree3
Over voltage category4
Power loss2.8W
Explosion-proofNo
Width in number of modular spacings2.0
Rated voltage415V
Flush-mounted installationNo
Degree of protection (IP)IP20
Ambient temperature during operating-40 - 70°C
Number of poles (total)2
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Number of protected poles2
Connectable conductor cross section solid-core0.75 - 35mm²
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V100kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

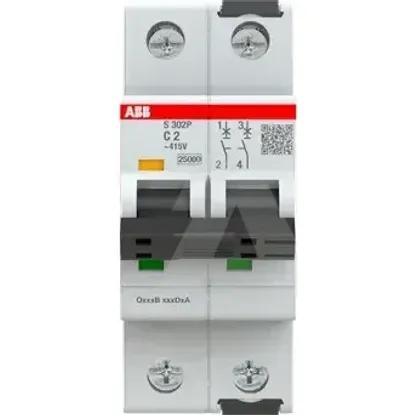

2CDS382001R0024 | S302P-C2
