Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Rated insulation voltage Ui500V
Built-in depth69mm
Ambient temperature during operating-40 - 70°C
Frequency50 - 60Hz
Flush-mounted installationNo
Degree of protection (IP)IP20
Power loss2W
Over voltage category4
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Current limiting class-
Pollution degree3
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Release characteristicB
Rated voltage415V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V100kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated impulse withstand voltage Uimp6kV
Width in number of modular spacings2
Rated current6A
Number of poles (total)2
Number of protected poles2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

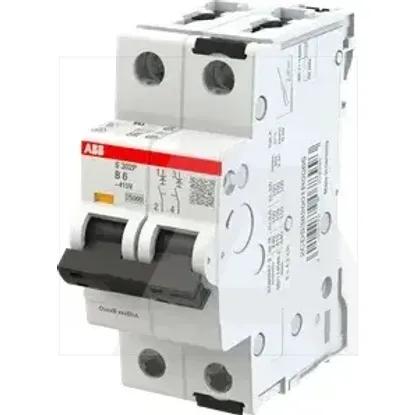

2CDS382001R0065 | S302P-B6
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Rated insulation voltage Ui
500V
Built-in depth
69mm
Ambient temperature during operating
-40 .. 70°C
Frequency
50 .. 60Hz
Flush-mounted installation
Degree of protection (IP)
IP20
Power loss
2W
Over voltage category
4
Explosion-proof
Connectable conductor cross section solid-core
0.75 .. 35mm²
Concurrently switching neutral conductor
Current limiting class
-
Pollution degree
3
Additional equipment possible
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Release characteristic
B
Rated voltage
415V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
100kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Rated impulse withstand voltage Uimp
6kV
Width in number of modular spacings
2
Rated current
6A
Number of poles (total)
2
Number of protected poles
2
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
