Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current16A
Voltage typeOther
Built-in depth69mm
Release characteristicB
Frequency50 - 60Hz
Rated voltage415V
Degree of protection (IP)IP20
Number of protected poles2
Connectable conductor cross section solid-core0.75 - 35mm²
Pollution degree3
Explosion-proofNo
Over voltage category4
Current limiting class-
Width in number of modular spacings2.0
Power loss3.4W
Concurrently switching neutral conductorNo
Rated insulation voltage Ui500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Flush-mounted installationNo
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Rated impulse withstand voltage Uimp6kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

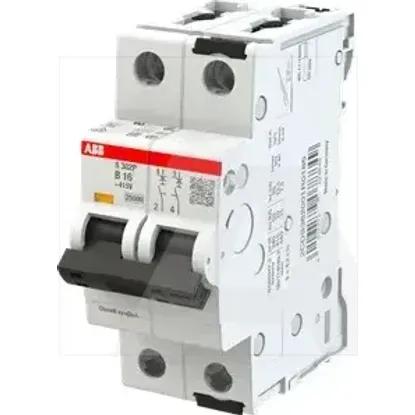

2CDS382001R0165 | S302P-B16
