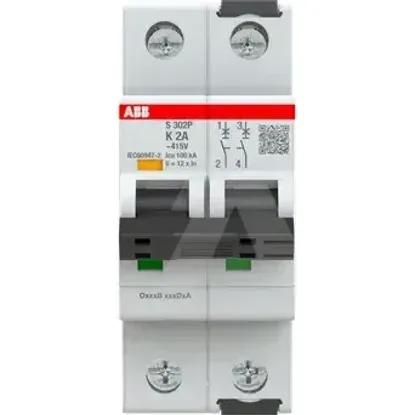

2CDS382001R0277 | S302P-K2
Code: 1997234
ManufacturerABB
Catalog number2CDS382001R0277
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779078726
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Voltage typeOther
Rated voltage415V
Built-in depth69mm
Pollution degree3
Explosion-proofNo
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Width in number of modular spacings2
Power loss2.6W
Over voltage category4
Rated insulation voltage Ui500V
Current limiting class-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Ambient temperature during operating-40 - 70°C
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated impulse withstand voltage Uimp6kV
Connectable conductor cross section solid-core0.75 - 35mm²
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated current2A
Release characteristicK
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
