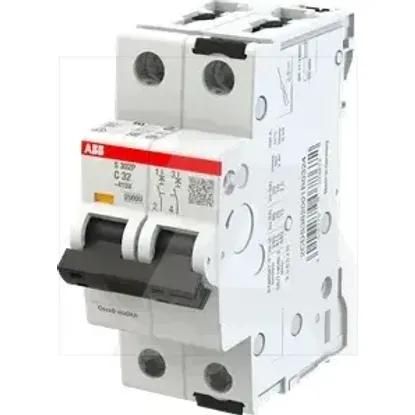

2CDS382001R0324 | S302P-C32
Code: 1997239
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Release characteristicC
Number of poles (total)2
Rated current32A
Rated voltage415V
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated insulation voltage Ui500V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Voltage typeOther
Current limiting class-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Frequency50 - 60Hz
Power loss5.8W
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V20kA
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Over voltage category4
Explosion-proofNo
Pollution degree3
Ambient temperature during operating-40 - 70°C
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Width in number of modular spacings2.0
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
