Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Over voltage category4
Pollution degree3
Frequency50 - 60Hz
Rated voltage415V
Width in number of modular spacings2.0
Rated current40A
Rated insulation voltage Ui500V
Release characteristicC
Current limiting class-
Built-in depth69mm
Voltage typeOther
Power loss5.8W
Explosion-proofNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Number of poles (total)2
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp6kV
Concurrently switching neutral conductorNo
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V20kA
Additional equipment possibleYes
Flush-mounted installationNo
Number of protected poles2
Connectable conductor cross section solid-core0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

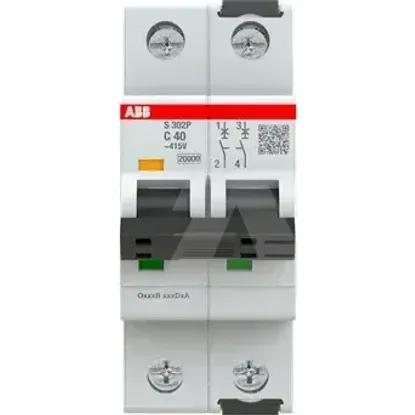

2CDS382001R0404 | S302P-C40
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Over voltage category
4
Pollution degree
3
Frequency
50 .. 60Hz
Rated voltage
415V
Width in number of modular spacings
2.0
Rated current
40A
Rated insulation voltage Ui
500V
Release characteristic
C
Current limiting class
-
Built-in depth
69mm
Voltage type
Other
Power loss
5.8W
Explosion-proof
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Number of poles (total)
2
Degree of protection (IP)
IP20
Rated impulse withstand voltage Uimp
6kV
Concurrently switching neutral conductor
Ambient temperature during operating
-40 .. 70°C
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
20kA
Additional equipment possible
Flush-mounted installation
Number of protected poles
2
Connectable conductor cross section solid-core
0.75 .. 35mm²
