Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Current limiting class-
Built-in depth69mm
Frequency50 - 60Hz
Voltage typeOther
Rated current16A
Rated voltage415V
Rated insulation voltage Ui500V
Release characteristicK
Over voltage category4
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 70°C
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Power loss2.8W
Connectable conductor cross section multi-wired0.75 - 25mm²
Width in number of modular spacings2.0
Number of protected poles2
Explosion-proofNo
Pollution degree3
Flush-mounted installationNo
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

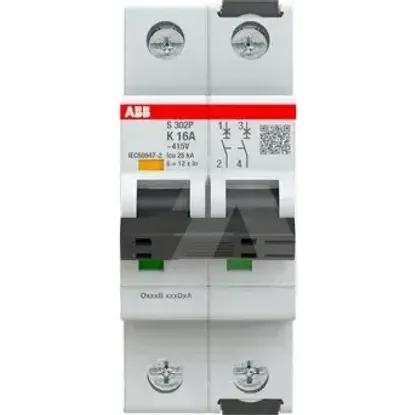

2CDS382001R0467 | S302P-K16
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Current limiting class
-
Built-in depth
69mm
Frequency
50 .. 60Hz
Voltage type
Other
Rated current
16A
Rated voltage
415V
Rated insulation voltage Ui
500V
Release characteristic
K
Over voltage category
4
Connectable conductor cross section solid-core
0.75 .. 35mm²
Ambient temperature during operating
-40 .. 70°C
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Power loss
2.8W
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Width in number of modular spacings
2.0
Number of protected poles
2
Explosion-proof
Pollution degree
3
Flush-mounted installation
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Rated impulse withstand voltage Uimp
6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
