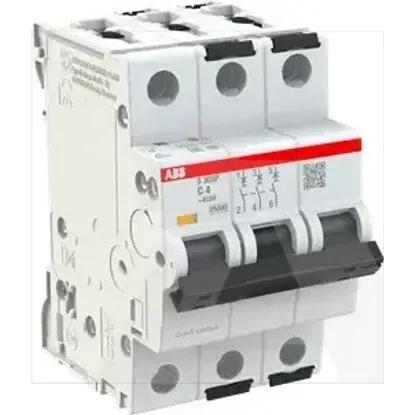

2CDS383001R0044 | S303P-C4
Code: 1997282
ManufacturerABB
Catalog number2CDS383001R0044
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779078221
Details
- •MINIJATURNI PREKIDAC, 3P, 4A, C KRIVULJA, 25kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Power loss4.2W
Pollution degree3
Degree of protection (IP)IP20
Current limiting class-
Rated impulse withstand voltage Uimp6kV
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Rated insulation voltage Ui500V
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated voltage415V
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Over voltage category4
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V100kA
Additional equipment possibleYes
Width in number of modular spacings3
Number of protected poles3
Rated current4A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
