Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage415V
Built-in depth69mm
Voltage typeOther
Rated current6A
Width in number of modular spacings3.0
Current limiting class-
Rated insulation voltage Ui500V
Over voltage category4
Pollution degree3
Frequency50 - 60Hz
Release characteristicB
Power loss3W
Degree of protection (IP)IP20
Explosion-proofNo
Flush-mounted installationNo
Number of protected poles3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V100kA
Number of poles (total)3
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Rated impulse withstand voltage Uimp6kV
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

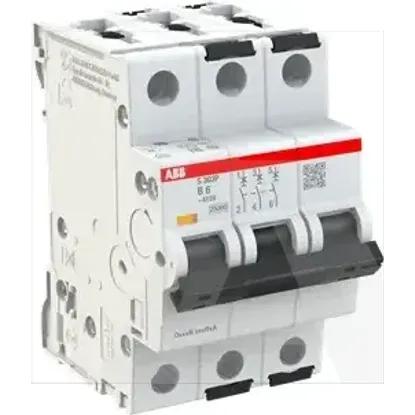

2CDS383001R0065 | S303P-B6
