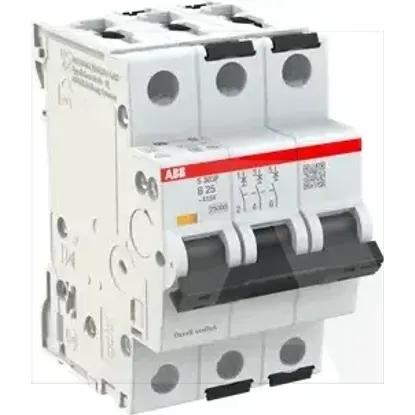

2CDS383001R0255 | S303P-B25
Code: 1997307
ManufacturerABB
Catalog number2CDS383001R0255
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779077958
Details
- •MINIJATURNI PREKIDAC, 3P, 25A, B KRIVULJA, 25kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage415V
Built-in depth69mm
Voltage typeOther
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Flush-mounted installationNo
Rated insulation voltage Ui500V
Rated impulse withstand voltage Uimp6kV
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 70°C
Current limiting class-
Over voltage category4
Degree of protection (IP)IP20
Power loss6.9W
Explosion-proofNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Width in number of modular spacings3
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Concurrently switching neutral conductorNo
Pollution degree3
Number of protected poles3
Rated current25A
Release characteristicB
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
