Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Frequency50 - 60Hz
Over voltage category4
Built-in depth69mm
Release characteristicZ
Current limiting class-
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Pollution degree3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Concurrently switching neutral conductorNo
Rated insulation voltage Ui500V
Rated voltage415V
Ambient temperature during operating-40 - 70°C
Flush-mounted installationNo
Explosion-proofNo
Power loss6.6W
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated impulse withstand voltage Uimp6kV
Rated current3A
Width in number of modular spacings3
Number of poles (total)3
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

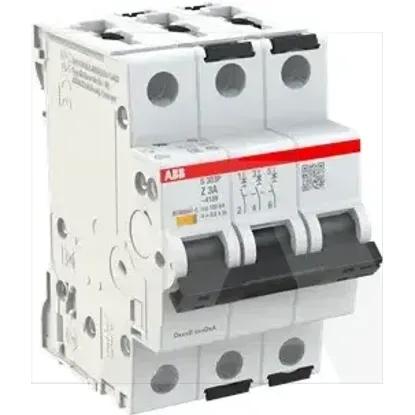

2CDS383001R0318 | S303P-Z3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Frequency
50 .. 60Hz
Over voltage category
4
Built-in depth
69mm
Release characteristic
Z
Current limiting class
-
Connectable conductor cross section solid-core
0.75 .. 35mm²
Degree of protection (IP)
IP20
Pollution degree
3
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Concurrently switching neutral conductor
Rated insulation voltage Ui
500V
Rated voltage
415V
Ambient temperature during operating
-40 .. 70°C
Flush-mounted installation
Explosion-proof
Power loss
6.6W
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Rated impulse withstand voltage Uimp
6kV
Rated current
3A
Width in number of modular spacings
3
Number of poles (total)
3
Number of protected poles
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
