Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Additional equipment possibleYes
Explosion-proofNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Concurrently switching neutral conductorYes
Current limiting class-
Power loss4W
Rated current6A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Pollution degree3
Number of poles (total)4
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Frequency50 - 60Hz
Release characteristicB
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V100kA
Number of protected poles3
Over voltage category4
Rated insulation voltage Ui500V
Rated impulse withstand voltage Uimp6kV
Degree of protection (IP)IP20
Ambient temperature during operating-40 - 70°C
Width in number of modular spacings4.0
Rated voltage415V
Connectable conductor cross section multi-wired0.75 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

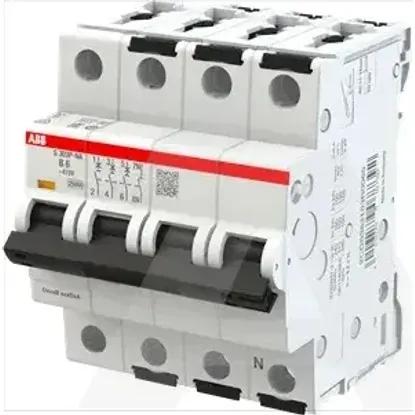

2CDS383103R0065 | S303P-B6NA
