Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Pollution degree3
Rated current25A
Current limiting class-
Width in number of modular spacings4.0
Release characteristicC
Rated insulation voltage Ui500V
Rated voltage415V
Over voltage category4
Frequency50 - 60Hz
Number of protected poles3
Concurrently switching neutral conductorYes
Explosion-proofNo
Power loss9.2W
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Number of poles (total)4
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Rated impulse withstand voltage Uimp6kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

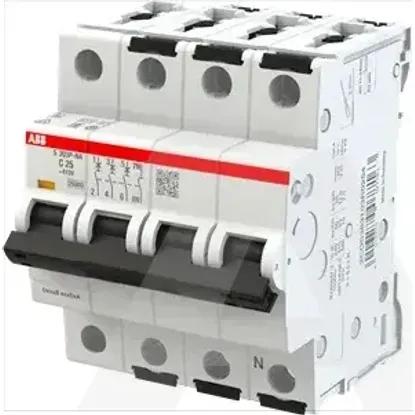

2CDS383103R0254 | S303P-C25NA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Built-in depth
69mm
Pollution degree
3
Rated current
25A
Current limiting class
-
Width in number of modular spacings
4.0
Release characteristic
C
Rated insulation voltage Ui
500V
Rated voltage
415V
Over voltage category
4
Frequency
50 .. 60Hz
Number of protected poles
3
Concurrently switching neutral conductor
Explosion-proof
Power loss
9.2W
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
0.75 .. 35mm²
Number of poles (total)
4
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Flush-mounted installation
Rated impulse withstand voltage Uimp
6kV
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Ambient temperature during operating
-40 .. 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
