Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Width in number of modular spacings4.0
Pollution degree3
Over voltage category4
Release characteristicC
Rated current40A
Built-in depth69mm
Rated insulation voltage Ui500V
Current limiting class-
Rated voltage415V
Power loss11.6W
Number of protected poles3
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Frequency50 - 60Hz
Degree of protection (IP)IP20
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V20kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated impulse withstand voltage Uimp6kV
Number of poles (total)4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Flush-mounted installationNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

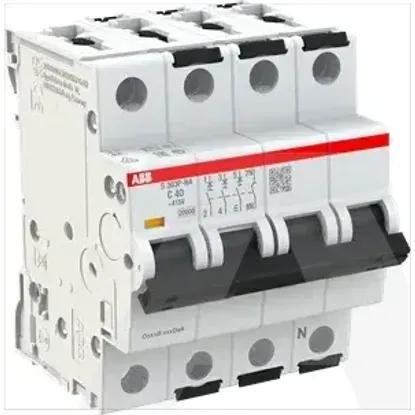

2CDS383103R0404 | S303P-C40NA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Width in number of modular spacings
4.0
Pollution degree
3
Over voltage category
4
Release characteristic
C
Rated current
40A
Built-in depth
69mm
Rated insulation voltage Ui
500V
Current limiting class
-
Rated voltage
415V
Power loss
11.6W
Number of protected poles
3
Concurrently switching neutral conductor
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Ambient temperature during operating
-40 .. 70°C
Explosion-proof
Connectable conductor cross section solid-core
0.75 .. 35mm²
Frequency
50 .. 60Hz
Degree of protection (IP)
IP20
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
20kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated impulse withstand voltage Uimp
6kV
Number of poles (total)
4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Flush-mounted installation
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
