Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicC
Rated voltage415V
Frequency50 - 60Hz
Pollution degree3
Current limiting class-
Voltage typeOther
Built-in depth69mm
Rated insulation voltage Ui500V
Explosion-proofNo
Over voltage category4
Width in number of modular spacings4.0
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Power loss24W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Number of poles (total)4
Additional equipment possibleYes
Number of protected poles3
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Rated current63A
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated impulse withstand voltage Uimp6kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

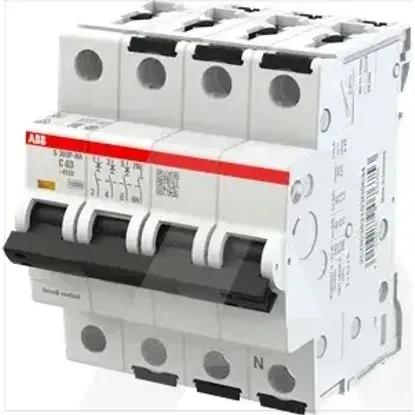

2CDS383103R0634 | S303P-C63NA
