Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Rated voltage415V
Voltage typeOther
Pollution degree3
Rated insulation voltage Ui500V
Current limiting class-
Release characteristicC
Width in number of modular spacings4.0
Frequency50 - 60Hz
Over voltage category4
Connectable conductor cross section solid-core0.75 - 35mm²
Rated current16A
Explosion-proofNo
Degree of protection (IP)IP20
Power loss6.8W
Concurrently switching neutral conductorNo
Number of protected poles4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Ambient temperature during operating-40 - 70°C
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Rated impulse withstand voltage Uimp6kV
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

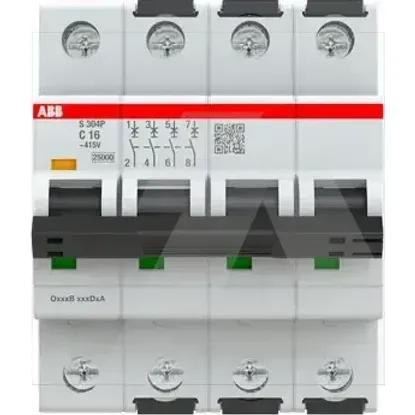

2CDS384001R0164 | S304P-C16
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Built-in depth
69mm
Rated voltage
415V
Voltage type
Other
Pollution degree
3
Rated insulation voltage Ui
500V
Current limiting class
-
Release characteristic
C
Width in number of modular spacings
4.0
Frequency
50 .. 60Hz
Over voltage category
4
Connectable conductor cross section solid-core
0.75 .. 35mm²
Rated current
16A
Explosion-proof
Degree of protection (IP)
IP20
Power loss
6.8W
Concurrently switching neutral conductor
Number of protected poles
4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Ambient temperature during operating
-40 .. 70°C
Additional equipment possible
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Flush-mounted installation
Rated impulse withstand voltage Uimp
6kV
Number of poles (total)
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
