Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Current limiting class-
Degree of protection (IP)IP20
Rated current25A
Rated insulation voltage Ui500V
Number of protected poles4
Explosion-proofNo
Concurrently switching neutral conductorNo
Power loss9.2W
Connectable conductor cross section solid-core0.75 - 35mm²
Rated voltage415V
Width in number of modular spacings4.0
Release characteristicC
Frequency50 - 60Hz
Pollution degree3
Over voltage category4
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Flush-mounted installationNo
Number of poles (total)4
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated impulse withstand voltage Uimp6kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

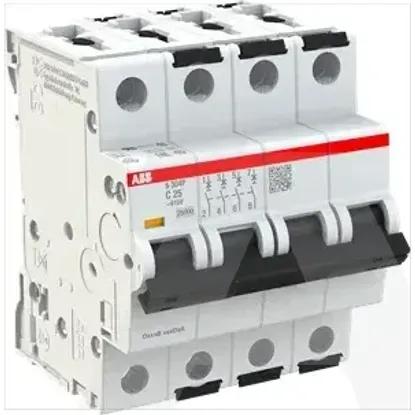

2CDS384001R0254 | S304P-C25
