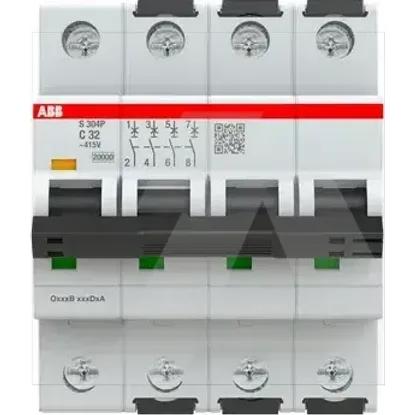

2CDS384001R0324 | S304P-C32
Code: 1997467
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp6kV
Rated current32A
Number of protected poles4
Release characteristicC
Number of poles (total)4
Rated voltage415V
Rated insulation voltage Ui500V
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V20kA
Current limiting class-
Power loss11.6W
Built-in depth69mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Frequency50 - 60Hz
Pollution degree3
Over voltage category4
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Width in number of modular spacings4.0
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS384001R0324 | S304P-C32
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated impulse withstand voltage Uimp
6kV
Rated current
32A
Number of protected poles
4
Release characteristic
C
Number of poles (total)
4
Rated voltage
415V
Rated insulation voltage Ui
500V
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
20kA
Current limiting class
-
Power loss
11.6W
Built-in depth
69mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Frequency
50 .. 60Hz
Pollution degree
3
Over voltage category
4
Additional equipment possible
Ambient temperature during operating
-40 .. 70°C
Concurrently switching neutral conductor
Flush-mounted installation
Width in number of modular spacings
4.0
Connectable conductor cross section solid-core
0.75 .. 35mm²
Explosion-proof
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
0.75 .. 25mm²
