Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicC
Voltage typeOther
Rated current40A
Built-in depth69mm
Frequency50 - 60Hz
Rated voltage415V
Rated insulation voltage Ui500V
Connectable conductor cross section solid-core0.75 - 35mm²
Power loss11.6W
Concurrently switching neutral conductorNo
Pollution degree3
Current limiting class-
Number of protected poles4
Degree of protection (IP)IP20
Explosion-proofNo
Width in number of modular spacings4.0
Over voltage category4
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V20kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Number of poles (total)4
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

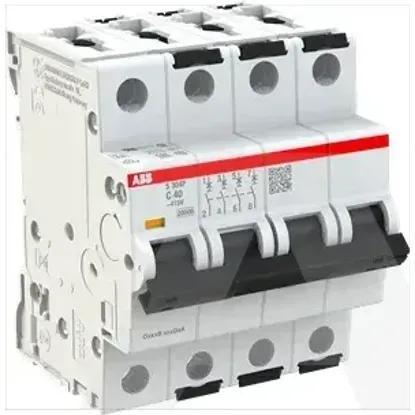

2CDS384001R0404 | S304P-C40
