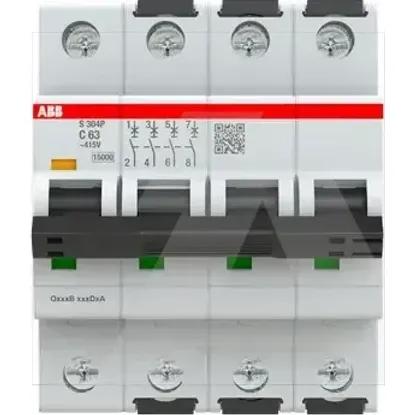

2CDS384001R0634 | S304P-C63
Code: 1997497
ManufacturerABB
Catalog number2CDS384001R0634
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779075954
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Power loss24W
Number of protected poles4
Built-in depth69mm
Over voltage category4
Explosion-proofNo
Voltage typeOther
Rated voltage415V
Pollution degree3
Rated insulation voltage Ui500V
Degree of protection (IP)IP20
Frequency50 - 60Hz
Width in number of modular spacings4
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Ambient temperature during operating-40 - 70°C
Current limiting class-
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp6kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Flush-mounted installationNo
Rated current63A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
