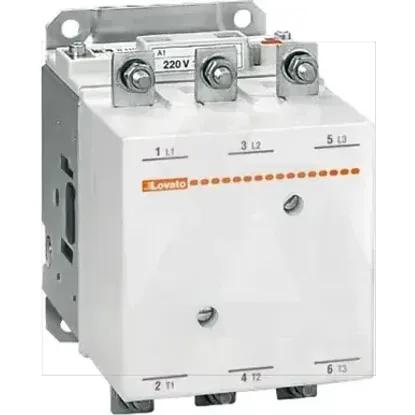

11B25000220 | SKLOPNIK B250.00
Code: 1998158
ManufacturerLovato
Catalog number11B25000220
TypePower contactor, AC switching
Category-
EAN code8013975026328
Details
- •Low-voltage control systems
- •Power contactor, AC switching
- •1 KOM
- •LOVATO
Technical specifications
Modular versionNo
Rated control supply voltage Us at DC220 - 240V
Rated control supply voltage Us at AC 60HZ220 - 240V
Voltage type for actuatingAC/DC
Rated operation current Ie at AC-4, 400 V92A
Type of electrical connection of main circuitBolt connection
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-1, 400 V350A
Rated operation power at AC-3, 400 V140kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 400 V265A
Rated control supply voltage Us at AC 50HZ220 - 240V
