Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Depth82.5mm
Rated operation power at AC-3, 400 V-kW
Height142mm
Number of auxiliary contacts as normally open contact-
Width81mm
Rated operating voltage- - -V
InterlockableNo
Number of poles3
Number of switches-
Number of auxiliary contacts as change-over contact-
Motor drive integratedNo
Rated permanent current Iu32A
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Version as main switchYes
Number of auxiliary contacts as normally closed contact-
Version as emergency stop installationNo
Colour control elementBlack
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Suitable for front mounting centreYes
Version as safety switchNo
Rated short-time withstand current lcw1.5kA
Rated operation power at AC-23, 400 V-kW
Suitable for intermediate mountingYes
Version as maintenance-/service switchNo
Voltage release optionalYes
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
Max. rated operation voltage Ue AC-V
Version as reversing switchNo
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

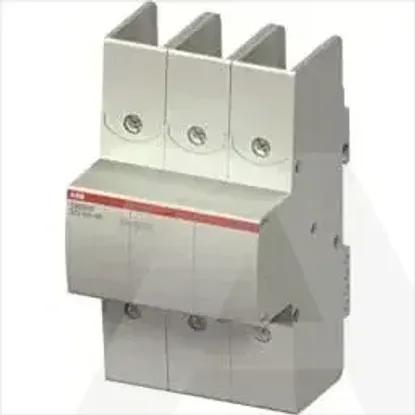

2CCF019047R0001 | S803HV-SCL32-SR
