Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Over voltage category4
Current limiting class3
Voltage typeOther
Rated current2A
Power loss4.4W
Width in number of modular spacings3
Built-in depth82.5mm
Frequency50 - 60Hz
Rated insulation voltage Ui690V
Release characteristicB
Rated voltage400V
Explosion-proofNo
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Number of poles (total)2
Pollution degree3
Connectable conductor cross section multi-wired0 - 50mm²
Number of protected poles2
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core0 - 70mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Flush-mounted installationYes
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated impulse withstand voltage Uimp8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

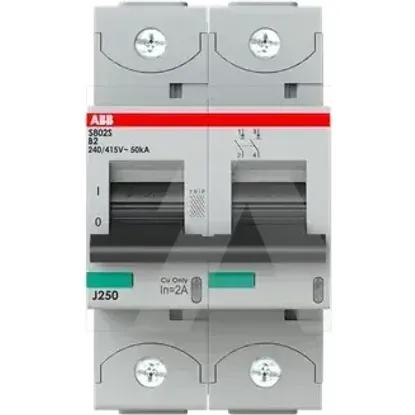

2CCF019868R0001 | S802S-B2
