Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Rated operation current Ie at AC-15, 230 V3A
Rated operation current Ie at DC-13, 230 V0.27A
Length of sensor16mm
Material housingMetal
Coating housingPowder coating
Degree of protection (IP)IP67
Rated operation current Ie at DC-13, 24 V2.8A
Explosion safety category for dustNone
Rated operation current Ie at AC-15, 125 V5.5A
Type of electric connectionWith cable preassembled
Forced openingNo
Width sensor30mm
Explosion safety category for gasNone
Type of interfaceNone
Rated operation current Ie at DC-13, 125 V0.55A
Rated operation current Ie at AC-15, 24 V10A
Output electronicNo
Type of control elementPlunger
Construction type housingCuboid
Diameter sensor0mm
Type of interface for safety communicationNone
Height of sensor70mm
Number of safety auxiliary contacts0
Suitable for safety functionsNo
With status indicationNo
Ambient temperature during operating-25 - 70°C
Alignment of the control elementOther
Degree of protection (NEMA)6
Number of contacts as change-over contact0
Switching function latchingNo
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

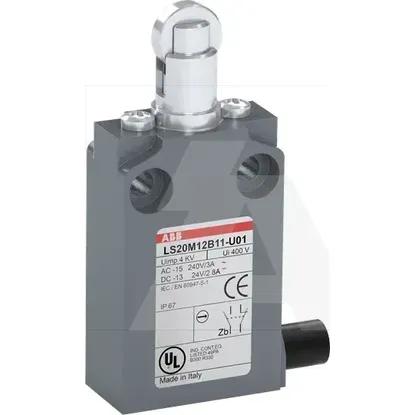

1SBV015512R2601 | LS20M12B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Switching function
Quick-break switch
Rated operation current Ie at AC-15, 230 V
3A
Rated operation current Ie at DC-13, 230 V
0.27A
Length of sensor
16mm
Material housing
Metal
Coating housing
Powder coating
Degree of protection (IP)
IP67
Rated operation current Ie at DC-13, 24 V
2.8A
Explosion safety category for dust
None
Rated operation current Ie at AC-15, 125 V
5.5A
Type of electric connection
With cable preassembled
Forced opening
Width sensor
30mm
Explosion safety category for gas
None
Type of interface
None
Rated operation current Ie at DC-13, 125 V
0.55A
Rated operation current Ie at AC-15, 24 V
10A
Output electronic
Type of control element
Plunger
Construction type housing
Cuboid
Diameter sensor
0mm
Type of interface for safety communication
None
Height of sensor
70mm
Number of safety auxiliary contacts
0
Suitable for safety functions
With status indication
Ambient temperature during operating
-25 .. 70°C
Alignment of the control element
Other
Degree of protection (NEMA)
6
Number of contacts as change-over contact
0
Switching function latching
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
