Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Construction type housingCuboid
Explosion safety category for dustNone
Coating housingPowder coating
Rated operation current Ie at DC-13, 230 V0.27A
Forced openingNo
Suitable for safety functionsNo
Material housingMetal
Degree of protection (IP)IP67
Rated operation current Ie at AC-15, 230 V3A
Type of interface for safety communicationNone
With status indicationNo
Type of electric connectionWith cable preassembled
Explosion safety category for gasNone
Switching functionQuick-break switch
Number of safety auxiliary contacts0
Output electronicNo
Rated operation current Ie at AC-15, 125 V5.5A
Type of interfaceNone
Type of control elementPlunger
Number of contacts as change-over contact0
Rated operation current Ie at DC-13, 125 V0.55A
Length of sensor16mm
Diameter sensor0mm
Alignment of the control elementOther
Height of sensor70mm
Switching function latchingNo
Width sensor30mm
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Ambient temperature during operating-25 - 70°C
Degree of protection (NEMA)6
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at DC-13, 24 V2.8A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

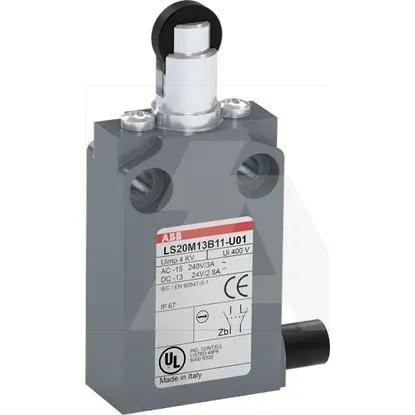

1SBV015513R2601 | LS20M13B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Construction type housing
Cuboid
Explosion safety category for dust
None
Coating housing
Powder coating
Rated operation current Ie at DC-13, 230 V
0.27A
Forced opening
Suitable for safety functions
Material housing
Metal
Degree of protection (IP)
IP67
Rated operation current Ie at AC-15, 230 V
3A
Type of interface for safety communication
None
With status indication
Type of electric connection
With cable preassembled
Explosion safety category for gas
None
Switching function
Quick-break switch
Number of safety auxiliary contacts
0
Output electronic
Rated operation current Ie at AC-15, 125 V
5.5A
Type of interface
None
Type of control element
Plunger
Number of contacts as change-over contact
0
Rated operation current Ie at DC-13, 125 V
0.55A
Length of sensor
16mm
Diameter sensor
0mm
Alignment of the control element
Other
Height of sensor
70mm
Switching function latching
Width sensor
30mm
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Ambient temperature during operating
-25 .. 70°C
Degree of protection (NEMA)
6
Rated operation current Ie at AC-15, 24 V
10A
Rated operation current Ie at DC-13, 24 V
2.8A
